TM50 Soft Gel Capsule Manufacturing Equipment , Soft Gelatin Encapsulation Machine Production Line

Hunan Grand Packing Machinery Co.,Ltd.
Contact Now

TM50 Soft Gel Capsule Manufacturing Equipment , Soft Gelatin Encapsulation Machine Production Line

Brand Name : Grand Packing

Model Number : TM-50

Certification : CE ISO GMP

Place of Origin : Beijing

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T, MoneyGram, Western Union

Supply Ability : 20 sets per month

Delivery Time : 40 days

Packaging Details : standard export wooden case

Temperature : 18-26•C

Humidity : 25%-35%.

Revolution speed of mould : 0-3.5rpm

.Production capacity : 5940 capsules/h(OB20 3rpm)oils

Plunger quantity : 4

The injecting quantity precision error : <±1.5%

Contact Now

TM50 soft gel encapsulation production line







TM50 soft gel encapsulation production line
Main Machine System
Room requirement (single for reference): its area should be 20㎡ with the floor height between 2.5m and 3m; the temperature should be controlled between 18-26•C while the relative humidity 25%-35%.
NO. Device Name Unit Qty Technical Parameters Remark

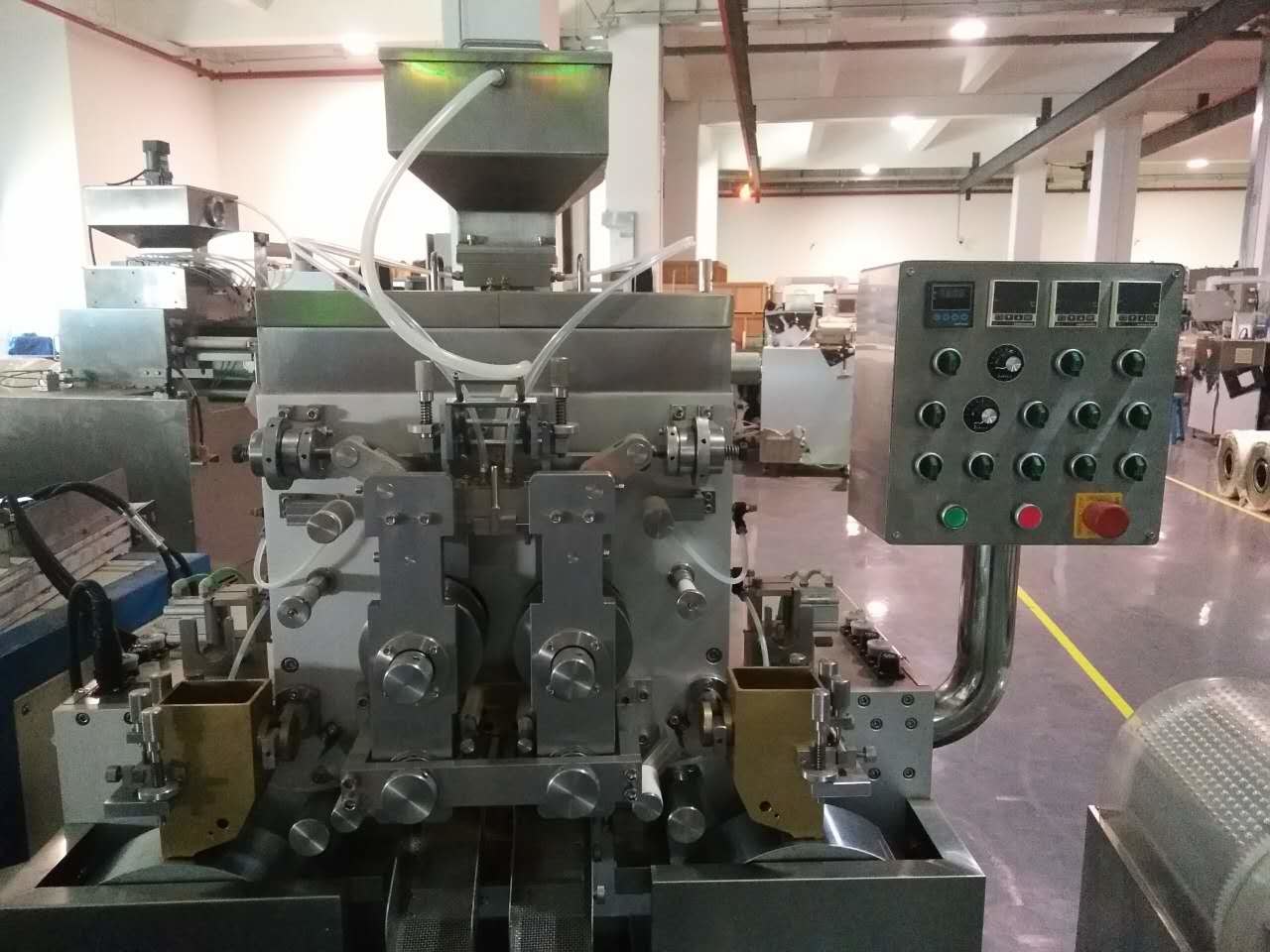

1 TM50 type capsule pressing machine set 1 1.Revolution speed of mould: 0-3.5rpm
2.Production capacity: 12240 capsules/h(OV8,3rpm)oils
5940 capsules/h(OB20 3rpm)oils
3.Plunger quantity: 4
4.The injecting quantity precision error:<±1.5%
5.Ultromicro lubricating system, the sofe capsules free from cleaning
6.Single layer hopper without agitator
7.Manual feeding
8.SMC pneumatic system, high reliability
9. Germany Moller electrical components, high reliability
10.Outline dimension: 1700×810×1750mm
11.Power: 2KW
12.Electrical system: three-phase five-wire system, 380v/50Hz

2 conveyor set 1 Pu belt, light-type structure power counted in main motor
3 control and operation interface system set 1 with rotary knob to operate
4 mould set 1 aviation aluminum
5 cooling water system set 1 independent cooling water system power counted in main motor
6 rotary cage drying machine section 2 1.Size of single cage: Ф316×417mm
2.Revolution speed: 15rpm
3.Fan delivery: 900m3×2
4.Outline dimension: 1400×450×800mm
5.Electrical system: three-phase five-wire system, 380v/50Hz

7
8
Gelatin Melting System (the platform, pipeline and valve systems are exclusive)
Room requirement (single for reference): its area should be 15㎡ with the floor height between 4.5m and 5m; the temperature should be controlled between 22-26•C while the relative humidity 40%-50%.
NO. Device Name Unit Qty Technical Parameters Remark
1 integrated gelatin melting system set 1 1.Three-layer thermal insulation and heating structure, electrical heating, vacuum function
2.Multiple impellers, agitation speed: 51rpm
3.Physical volume: 100L, Working volume: 70L
4.Vacuum degree: 0.09Mpa
5.Working temperature: 0-100℃
6.Outline dimension: 960×715×1850mm
7.Power: 9.7KW
8.Electrical system: three-phase five-wire system, 380v/50Hz
9.Material: 304 stainless steel
100L water-bath gelatin melting tank
set 1 tank cover and agitator blade lift system integrated hydraulic lift system
set 1 - integrated vacuum condensation system
set 1 - integrated steam-water separator
set 1 - integrated water ring vacuum pump
set 1 control range: heating, agitating, vacuum and work light etc. integrated control cabinet
2
3
Drying System
Room requirement: its area should be 10㎡ with the floor height between 2.2m and 2.5m; the temperature should be controlled between 18-26•C while the relative humidity 20%-25%.
NO. Device Name Unit Qty Technical Parameters (single) Remark
1 drying tray N 90 1.Outline dimension: 750×475×55 mm
2.Material: medical grade PP

2 drying tray carriage N 3 Material: 304stainless steel
3
